CONTACT TWINS IN CRYSTALS

Contact Twins in Crystals

Introduction

• Contact Twinning is one of the simplest and most commonly observed forms of crystal twinning. In this type of twinning, two crystal individuals of the same mineral species are joined together along a common surface called the twin plane. The two crystals are arranged symmetrically with respect to this plane and appear as mirror images of each other.
• Contact twins are widely distributed in nature and occur in numerous minerals. Their symmetrical arrangement often produces distinctive crystal shapes that help mineralogists identify minerals quickly and accurately. Because contact twinning follows definite crystallographic laws, it is considered an important topic in crystallography.
• The study of contact twins provides valuable information about crystal growth, crystal symmetry, and geological processes. It also helps scientists understand how crystals respond to changes in temperature, pressure, and environmental conditions during their formation.

What are Contact Twins?

• Contact Twins are twin crystals in which two crystal individuals are united along a single crystallographic plane known as the twin plane.
• The twin plane acts as a mirror surface across which the crystal individuals are related.
• Each crystal retains its own internal structure but is oriented differently according to a specific twin law.
• The boundary between the twin individuals is usually distinct and often visible.
• Contact twins are among the easiest types of twins to recognize because of their simple geometrical arrangement.

Definition of Contact Twinning

• Contact twinning may be defined as the symmetrical intergrowth of two crystal individuals related by reflection across a common twin plane.
• The twin plane serves as the plane of symmetry that connects the two crystal segments.
• The resulting crystal often appears as a single crystal externally but consists internally of two distinct crystal individuals.

Formation of Contact Twins

• Contact twins usually form during the early stages of crystal growth.
• Slight variations in atomic arrangement cause part of the growing crystal to adopt a different orientation.
• The newly formed crystal segment continues to grow while maintaining a symmetrical relationship with the original crystal.
• Contact twinning may also develop during structural transformations caused by changes in temperature or pressure.
• In some minerals, deformation caused by geological forces may contribute to twin formation.

Characteristics of Contact Twins

• Consist of two crystal individuals.
• Joined together along a twin plane.
• Crystal individuals belong to the same mineral species.
• Both individuals possess identical chemical composition.
• The crystals are related by a definite symmetry relationship.
• The twin boundary is often clearly visible.
• The arrangement follows a specific twin law.
• Contact twins commonly produce symmetrical crystal shapes.

Twin Plane in Contact Twins

• The most important feature of a contact twin is the twin plane.
• This plane acts as a mirror surface separating the two crystal individuals.
• One crystal appears as the reflected image of the other across the twin plane.
• The orientation of the twin plane is determined by the twin law.
• Different minerals possess different twin planes depending on their crystal structure.

Twin Law and Contact Twins

• Every contact twin follows a specific twin law.
• A twin law defines the crystallographic relationship between the twin individuals.
• The law specifies the twin plane, twin axis, or symmetry operation responsible for the twin arrangement.
• Twin laws are important because they allow mineralogists to classify and identify twin crystals accurately.

Mechanism of Contact Twin Formation

Growth Twinning

• Most contact twins develop during crystal growth.
• Atoms arrange themselves in a slightly different orientation while maintaining crystallographic order.
• The result is the formation of two crystal individuals joined by a twin plane.

Transformation Twinning

• Some contact twins form during structural transformations.
• Changes in temperature or pressure may alter the crystal structure.
• During the transformation process, twin relationships may develop.

Deformation Twinning

• Mechanical stress may also produce contact twins.
• Compression and tectonic forces can cause crystal lattices to shift into twin orientations.
• This type of twinning is common in certain minerals subjected to geological deformation.

Types of Contact Twins

Simple Contact Twins

• Consist of only two crystal individuals.
• The twin plane is clearly visible.
• These twins are among the most common forms observed in nature.

Repeated Contact Twins

• Involve several crystal individuals arranged according to the same twin law.
• These twins produce more complex crystal patterns.
• Repeated contact twinning often leads to polysynthetic twin structures.

Examples of Contact Twins

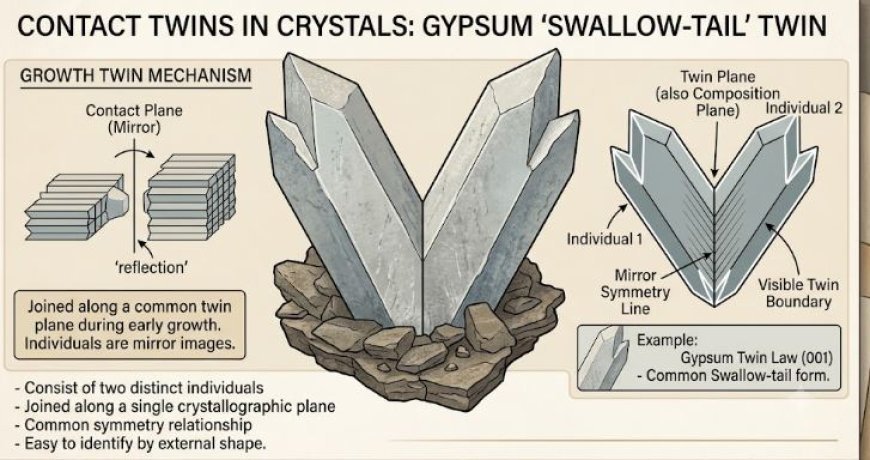

Gypsum Twins

• Gypsum provides one of the best-known examples of contact twinning.
• The famous Swallow-Tail Twin consists of two crystal individuals joined along a twin plane.
• The crystal resembles the tail of a swallow bird and is commonly illustrated in crystallography textbooks.
• Swallow-tail twins are characteristic of gypsum and serve as an important identification feature.

Orthoclase Feldspar Twins

• Orthoclase Feldspar commonly exhibits contact twinning.
• One of the most important examples is the Baveno Twin.
• In this twin, the crystal individuals are related according to a specific crystallographic plane.
• Baveno twins are frequently used in mineral identification.

Microcline Twins

• Some varieties of microcline feldspar display contact twin relationships.
• These twins contribute to the complex internal structures observed in feldspar minerals.

Calcite Twins

• Calcite may develop contact twins during deformation.
• These twins are often visible under microscopic examination and provide evidence of geological stress.

Recognition of Contact Twins

• Contact twins are usually recognized by the presence of a visible twin boundary.
• The crystal often appears divided into two symmetrical halves.
• Repeated crystal faces on opposite sides of the twin plane indicate twinning.
• Mineralogists may use hand specimens, optical microscopy, and crystallographic measurements to identify contact twins.
• In many cases, the twin plane can be observed directly on the crystal surface.

Importance of Contact Twins in Mineral Identification

• Contact twins are valuable diagnostic features in mineral identification.
• Certain minerals possess characteristic contact twin forms that help distinguish them from similar minerals.
• The presence of a specific twin law often provides strong evidence for identifying a mineral species.
• Contact twins are especially important in feldspar, gypsum, and calcite identification.

Geological Significance of Contact Twins

• Contact twins preserve information about crystal growth conditions.
• They may indicate specific temperature and pressure conditions during mineral formation.
• Deformation twins provide evidence of tectonic stress and geological deformation.
• Transformation twins reveal structural changes within minerals.
• The study of contact twins helps geologists reconstruct the geological history of rocks and minerals.

Applications of Contact Twin Studies

• Mineral identification
• Petrographic analysis
• Structural geology
• Metamorphic studies
• Crystallographic research
• Gemstone analysis
• Material science
• Crystal growth investigations

Advantages of Studying Contact Twins

• Helps identify minerals accurately.
• Provides information about crystal symmetry.
• Reveals geological conditions during mineral formation.
• Assists in understanding crystal growth mechanisms.
• Supports crystallographic classification.
• Contributes to geological and mineralogical research.

Difference Between Contact Twins and Other Twins

• Contact twins are joined along a twin plane.
• Interpenetration twins grow through one another without a simple contact surface.
• Polysynthetic twins consist of multiple parallel twin lamellae.
• Simple contact twins contain only two crystal individuals.
• The visible twin plane is the main feature distinguishing contact twins from other forms of twinning.

Importance of Contact Twins in Crystallography

• Contact twins are among the most important crystal twin structures because they provide clear examples of crystallographic symmetry relationships.
• They demonstrate how crystals can grow in multiple orientations while maintaining an orderly internal structure.
• The study of contact twins helps scientists understand crystal growth processes, mineral formation, and structural changes within crystals.
• Contact twins also play a major role in mineral classification and crystallographic research.
• Because they are common, easily recognized, and scientifically significant, contact twins remain one of the most important topics in crystallography and mineralogy.
• Understanding contact twins provides a strong foundation for studying more complex forms of twinning such as Interpenetration Twins, Polysynthetic Twins, and Twin Laws, which are essential topics in advanced crystallographic studies.
