Digital and Analog Signals: Understanding ASK, FSK, and PSK Modulation Techniques

Digital Signal

A digital signal conveys information using distinct and separate levels. At any moment, the signal holds only one value from a fixed set of possible values, most commonly represented as 0 and 1.

Digital signals are widely used in computers, mobile phones, and communication systems because they ensure reliability and resistance to distortion over long distances.

Analog Signal

An analog signal changes smoothly over time and directly represents physical quantities such as sound, temperature, or pressure. Unlike digital signals, analog signals do not jump between levels; they vary continuously.

Examples of analog signals include audio waves, radio broadcasts, and electrical signals from a microphone.

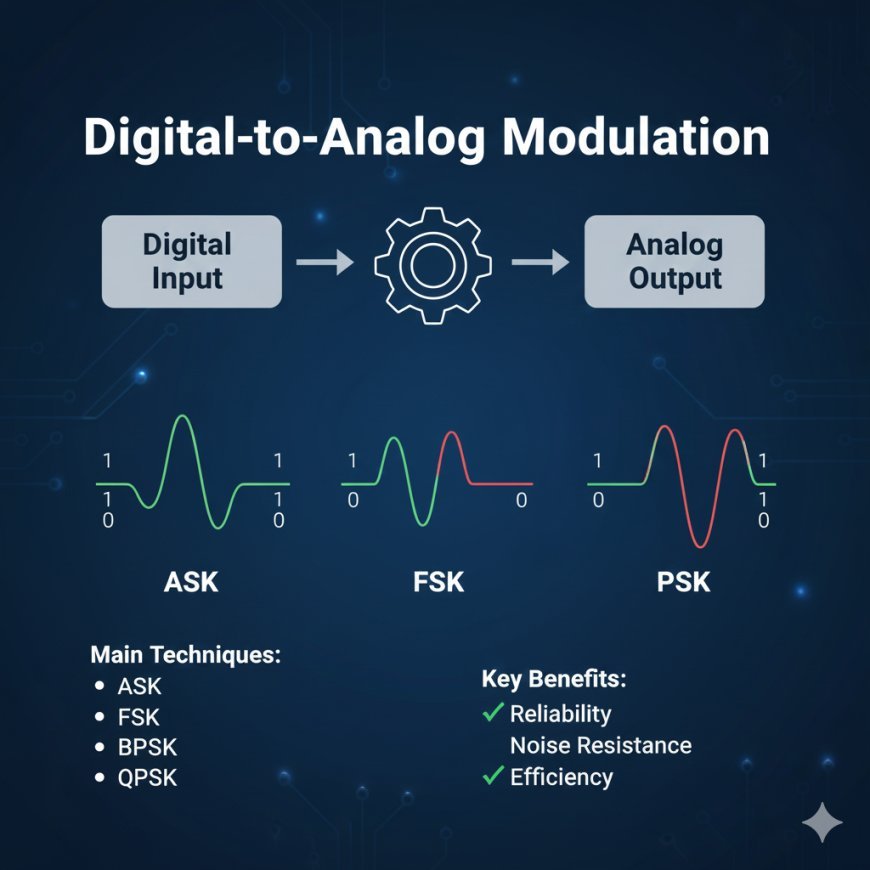

Digital-to-Analog Modulation Techniques

When digital information needs to be transmitted through analog systems, it is converted using modulation techniques. Below are the main methods used in digital-to-analog conversion.

1. Amplitude Shift Keying (ASK)

Amplitude Shift Keying transmits digital data by altering the strength (amplitude) of an analog carrier wave.

Working Principle:

• A strong carrier signal represents binary 1.
• A weak or zero-amplitude carrier represents binary 0.
• The frequency and timing of the carrier wave are not changed.

Advantages of ASK:

• Hardware design is simple and cost-effective.
• Requires less bandwidth compared to frequency-based techniques.
• Commonly used in optical communication systems.

Limitations of ASK:

• Highly sensitive to noise and signal interference.
• Signal loss can occur during transmission.
• Power usage is not efficient.

2. Frequency Shift Keying (FSK)

Frequency Shift Keying encodes data by modifying the frequency of the carrier wave in response to digital input.

Working Principle:

• A higher frequency signal indicates binary 1.
• A lower frequency signal indicates binary 0.
• The signal amplitude and phase stay unchanged.

Advantages of FSK:

• More resistant to signal corruption by noise compared to ASK.
• Provides lower error probability.
• Suitable for systems operating at slow data rates.

Limitations of FSK:

• Consumes more bandwidth relative to ASK.
• Less efficient in terms of power usage.

3. Phase Shift Keying (PSK)

In Phase Shift Keying, the direction of the carrier signal (phase) is changed to transmit binary information, while its amplitude and frequency remain fixed.

Binary Phase Shift Keying (BPSK)

BPSK is the most basic mode of PSK.

Characteristics:

• Uses two distinct phase positions.
• A phase shift of 180° distinguishes between binary 0 and binary 1.
• This technique is known for its reliability over long transmission distances.

Quadrature Phase Shift Keying (QPSK)

QPSK is an advanced form of PSK that improves data speed.

Characteristics:

• Applies four different phase values.
• Each symbol carries two bits instead of one.
• Phase changes occur at 90° intervals.
• Offers double the data transmission rate when compared to BPSK.

Advantages of PSK:

• Consumes less signal power compared to ASK and FSK.
• Performs better in noisy environments.
• More efficient data transmission than frequency-based modulation.

Limitations of PSK:

• Requires complex receiver systems.
• Processing and detection are difficult.
• Synchronization of phase is challenging.
