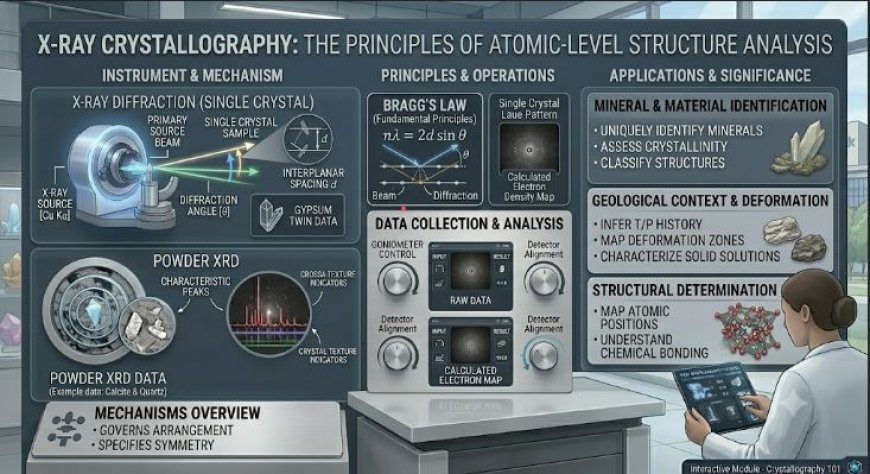

X-RAY CRYSTALLOGRAPHY

X-ray Crystallography

Introduction

• X-ray Crystallography is one of the most important techniques used in modern science to study the internal structure of crystalline materials. Before the discovery of X-rays, scientists could only observe the external shape of crystals. However, understanding the arrangement of atoms inside a crystal remained a major challenge.
• The discovery of X-rays and their interaction with crystals provided a revolutionary method for examining crystal structures. When X-rays pass through a crystal, they are scattered by the atoms arranged within the crystal lattice. The resulting diffraction pattern contains valuable information about the arrangement of atoms.
• Today, X-ray crystallography is widely used in geology, mineralogy, chemistry, physics, materials science, biology, medicine, and engineering. It has helped scientists determine the structures of minerals, metals, proteins, DNA, and numerous other crystalline substances.

What is X-ray Crystallography?

• X-ray Crystallography is a technique used to determine the three-dimensional arrangement of atoms within a crystal by analyzing the diffraction of X-rays.
• The method relies on the interaction between X-rays and the regularly arranged atoms of a crystal.
• By studying the diffraction pattern produced by X-rays, scientists can calculate the position of atoms and determine the crystal structure.
• This technique provides detailed information about crystal symmetry, lattice dimensions, atomic positions, and chemical bonding.

Historical Background

• The development of X-ray crystallography began after the discovery of X-rays by Wilhelm Conrad Roentgen in 1895.
• In 1912, Max von Laue demonstrated that crystals could diffract X-rays, proving that X-rays behave as waves.
• Shortly afterward, William Henry Bragg and William Lawrence Bragg developed the fundamental principles of X-ray diffraction.
• Their work led to the formulation of Bragg’s Law, which became the foundation of X-ray crystallography.
• Since then, X-ray crystallography has become one of the most powerful tools in scientific research.

Principle of X-ray Crystallography

• The principle of X-ray crystallography is based on the diffraction of X-rays by crystal planes.
• Crystals contain atoms arranged in a regular and repeating pattern.
• When X-rays strike these atomic planes, they are scattered in different directions.
• Under specific conditions, the scattered X-rays interfere constructively and produce diffraction patterns.
• These patterns contain information about the spacing and arrangement of atoms within the crystal.
• By analyzing the diffraction pattern, scientists can determine the crystal structure.

Bragg’s Law

• The fundamental equation of X-ray crystallography is Bragg’s Law.

Bragg’s Equation

nλ = 2d sin θ

Where:

• n = Order of diffraction
• λ = Wavelength of X-rays
• d = Distance between crystal planes
• θ = Angle of diffraction
• Bragg’s Law explains the condition under which constructive interference occurs.
• It allows scientists to calculate interplanar spacing and identify crystal structures.
• This equation forms the basis of modern X-ray diffraction analysis.

Properties of X-rays

Short Wavelength

• X-rays possess wavelengths similar to the distances between atoms in crystals.
• This makes them ideal for studying crystal structures.

High Penetrating Power

• X-rays can penetrate many materials and interact with internal crystal structures.

Electromagnetic Nature

• X-rays are a form of electromagnetic radiation.
• They exhibit wave-like properties necessary for diffraction.

Diffraction Capability

• The ability of X-rays to diffract from crystal planes makes crystallographic studies possible.

Components of an X-ray Crystallography Instrument

X-ray Source

• Produces X-rays used in the experiment.
• Commonly consists of an X-ray tube containing a metal target.

Collimator

• Directs the X-ray beam into a narrow and controlled path.
• Improves measurement accuracy.

Crystal Sample Holder

• Holds the crystal specimen in the correct position.
• Allows precise alignment during analysis.

Detector

• Records the diffracted X-rays.
• Modern instruments use electronic detectors for accurate measurements.

Computer System

• Processes diffraction data.
• Generates crystal structure models and analytical results.

Working Procedure of X-ray Crystallography

Sample Preparation

• A suitable crystal specimen is selected.
• The crystal should be well-formed and free from major defects.

X-ray Exposure

• The crystal is exposed to a beam of X-rays.
• The X-rays interact with the atomic planes inside the crystal.

Diffraction

• The crystal diffracts the X-rays according to its internal structure.
• A diffraction pattern is produced.

Data Collection

• Diffracted X-rays are detected and recorded.
• The intensity and position of diffraction spots are measured.

Data Analysis

• Mathematical calculations are performed.
• Atomic positions and crystal structure are determined.

Structure Determination

• A three-dimensional model of the crystal structure is created.
• Scientists interpret the arrangement of atoms within the crystal.

X-ray Diffraction (XRD)

• X-ray Diffraction (XRD) is the practical application of X-ray crystallography.
• It is one of the most widely used analytical techniques for crystalline materials.
• XRD helps identify minerals, determine crystal structures, and measure lattice parameters.
• Geological laboratories commonly use XRD for mineral identification.

Types of X-ray Crystallography

Single Crystal X-ray Crystallography

• Uses a single crystal specimen.
• Provides highly detailed structural information.
• Suitable for determining exact atomic arrangements.

Powder X-ray Diffraction

• Uses powdered crystalline material.
• Commonly employed in geology and mineralogy.
• Useful for identifying unknown minerals.

Protein Crystallography

• Used to study biological molecules such as proteins.
• Plays an important role in medicine and biotechnology.

Applications in Geology and Mineralogy

Mineral Identification

• X-ray crystallography is widely used to identify minerals.
• Each mineral produces a unique diffraction pattern.

Determination of Crystal Structure

• Helps determine atomic arrangements in minerals.
• Provides information about crystal symmetry and lattice dimensions.

Study of Clay Minerals

• XRD is extensively used for analyzing clay minerals.
• Important in sedimentary geology and soil science.

Ore Mineral Analysis

• Helps identify ore minerals in mining exploration.
• Assists in resource evaluation.

Applications in Other Fields

Chemistry

• Determines molecular structures.
• Studies chemical bonding.

Biology

• Used to determine protein and DNA structures.
• Essential for understanding biological processes.

Medicine

• Supports drug design and pharmaceutical research.
• Helps develop new medicines.

Materials Science

• Used to study metals, ceramics, semiconductors, and advanced materials.

Engineering

• Assists in quality control and material characterization.

Advantages of X-ray Crystallography

• Provides highly accurate structural information.
• Non-destructive analytical method.
• Suitable for a wide range of crystalline materials.
• Helps identify unknown minerals.
• Determines atomic arrangements precisely.
• Supports scientific research and industrial applications.

Limitations of X-ray Crystallography

• Requires crystalline material.
• Poorly crystallized substances may be difficult to analyze.
• Sample preparation can be time-consuming.
• Interpretation of complex diffraction data requires expertise.
• Large equipment and specialized facilities may be necessary.

Importance of X-ray Crystallography in Mineralogy

• X-ray crystallography transformed the study of minerals by revealing their internal atomic structures.
• It allows mineralogists to classify minerals accurately and understand their properties.
• The technique provides essential information about crystal symmetry, lattice parameters, and chemical composition.
• Modern mineral identification relies heavily on X-ray diffraction methods.

Significance of X-ray Crystallography

• X-ray crystallography is one of the greatest achievements in modern science.
• It provides a direct method for studying crystal structures at the atomic level.
• The technique has contributed significantly to geology, mineralogy, chemistry, biology, medicine, and materials science.
• Many scientific discoveries, including the structure of DNA, were made possible through X-ray crystallographic studies.
• It continues to play a vital role in research, education, and industrial applications worldwide.
• Because it reveals the internal architecture of crystalline materials with remarkable accuracy, X-ray Crystallography remains one of the most important and powerful techniques in the field of crystallography and modern science.
