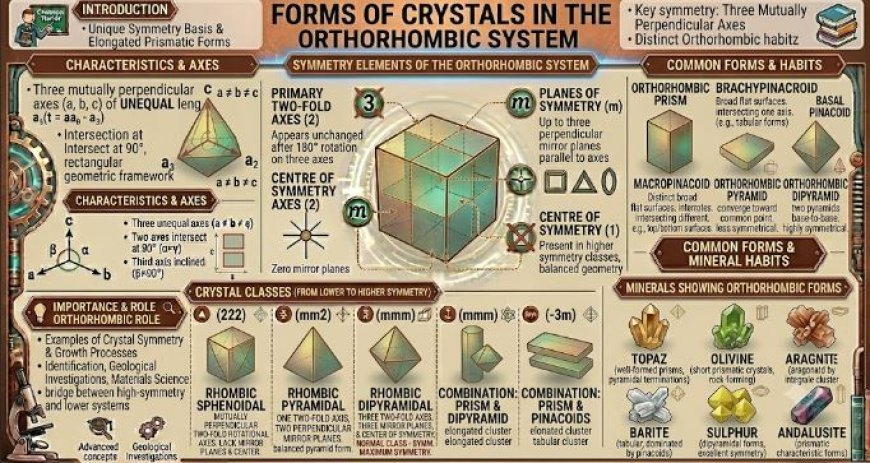

Forms of Crystals in the Orthorhombic System

Forms of Crystals in the Orthorhombic System

Introduction

• The Orthorhombic Crystal System is one of the most important crystal systems in crystallography. It is characterized by three crystallographic axes of unequal lengths that intersect each other at 90°. Although the axes are unequal, the right-angle arrangement produces a high degree of geometric regularity. This system occupies an intermediate position between highly symmetrical systems such as tetragonal and lower symmetry systems such as monoclinic.
• Crystals belonging to the orthorhombic system display a wide variety of crystal forms. These forms develop due to differences in crystal growth rates and the influence of symmetry elements. The study of orthorhombic crystal forms helps geologists and mineralogists identify minerals and understand crystal morphology.
• Many important minerals such as olivine, topaz, barite, andalusite, sulphur, and aragonite crystallize in this system. Their crystal forms provide excellent examples of orthorhombic symmetry and crystal development.

Characteristics of Orthorhombic Crystal Forms

• Crystal forms are based on three unequal crystallographic axes.
• The axes intersect at right angles (90°).
• Crystal forms commonly exhibit two-fold rotational symmetry.
• Prisms and dipyramids are the most common forms.
• Crystal faces are arranged symmetrically around the crystallographic axes.
• Several forms may combine during crystal growth to produce complex crystal habits.
• Orthorhombic crystals generally appear elongated, tabular, or prismatic.

Orthorhombic Prism

• The Orthorhombic Prism is one of the most common crystal forms in this system. It consists of a series of rectangular faces arranged parallel to one crystallographic axis.
• Unlike tetragonal or hexagonal prisms, the orthorhombic prism has unequal dimensions because the crystallographic axes are not equal in length.
• These prisms often develop elongated crystal habits and are commonly observed in minerals such as topaz and barite.
• Orthorhombic prisms frequently form the main body of crystals and may be combined with pyramidal or pinacoidal forms at their ends.
• This crystal form clearly demonstrates the influence of unequal crystallographic axes on crystal shape.

Brachypinacoid

• The Brachypinacoid consists of two parallel crystal faces that intersect one crystallographic axis while remaining parallel to the other two.
• It is one of the simplest forms found in orthorhombic crystals and often develops as broad flat surfaces.
• Brachypinacoids commonly occur together with prisms and contribute to the tabular appearance of many orthorhombic minerals.
• These forms are important because they help define crystal dimensions and external appearance.

Macropinacoid

• The Macropinacoid is another pinacoidal form consisting of two parallel faces.
• The orientation of these faces differs from that of the brachypinacoid, producing a distinct crystal surface.
• Macropinacoids frequently combine with prisms and dipyramids to create more complex crystal shapes.
• In many orthorhombic minerals, these forms contribute significantly to crystal habit and morphology.

Basal Pinacoid

• The Basal Pinacoid consists of two parallel faces perpendicular to the vertical axis.
• These faces often form the top and bottom surfaces of a crystal.
• Basal pinacoids are commonly associated with tabular crystals and may occur together with prisms and domes.
• Their presence influences the overall proportions of the crystal and contributes to its characteristic appearance.

Orthorhombic Pyramid

• The Orthorhombic Pyramid consists of crystal faces that converge toward a common point at one end of the crystal.
• Unlike tetragonal or hexagonal pyramids, orthorhombic pyramids are based on unequal crystallographic axes, resulting in less symmetrical face arrangements.
• These pyramids commonly occur as terminal forms on orthorhombic prisms.
• The crystal faces are arranged according to the symmetry requirements of the orthorhombic system.
• Orthorhombic pyramids contribute to the development of pointed crystal terminations and are useful in mineral identification.

Orthorhombic Dipyramid

• The Orthorhombic Dipyramid is formed when two pyramids are joined base to base.
• This form consists of several triangular faces arranged symmetrically around the crystal.
• The dipyramid is one of the most characteristic crystal forms of the orthorhombic system.
• Minerals such as sulphur and aragonite commonly develop dipyramidal crystal forms.
• The orthorhombic dipyramid demonstrates the influence of crystal symmetry while maintaining the unequal axis lengths characteristic of the system.

Brachydome

• The Brachydome consists of two non-parallel faces that intersect along a common edge.
• It is symmetrical with respect to one crystallographic direction and commonly occurs as an accessory form.
• Brachydomes frequently modify the ends of crystals and contribute to more complex crystal habits.
• These forms are important in advanced crystal morphology studies.

Macrodome

• The Macrodome is similar to the brachydome but differs in orientation.
• It consists of two crystal faces related by symmetry and often occurs in combination with pinacoids and prisms.
• Macrodomes contribute to the overall complexity of orthorhombic crystals and help mineralogists identify specific crystal classes.

Combinations of Orthorhombic Crystal Forms

• Natural crystals rarely consist of a single crystal form. Instead, multiple forms develop together during crystal growth.
• A crystal may consist of an orthorhombic prism combined with a dipyramid, producing an elongated crystal with pointed ends.
• Pinacoids may occur together with prisms, creating broad flat surfaces.
• Domes may modify crystal terminations and generate complex geometrical shapes.
• These combinations create the wide variety of crystal habits observed in orthorhombic minerals.
• Understanding these combinations is essential for interpreting crystal growth history and identifying minerals accurately.

Minerals Showing Orthorhombic Crystal Forms

• Several important minerals display crystal forms belonging to the orthorhombic system.
• Topaz commonly develops well-formed orthorhombic prisms with pyramidal terminations.
• Olivine often occurs as short prismatic crystals and is an important rock-forming mineral.
• Barite frequently develops tabular crystals dominated by pinacoidal forms.
• Sulphur commonly exhibits dipyramidal crystal forms with excellent symmetry.
• Andalusite often develops prismatic crystals characteristic of orthorhombic symmetry.
• Aragonite forms elongated crystals and is an important mineral in sedimentary environments.
• These minerals provide excellent examples for studying orthorhombic crystal morphology and crystal growth.

Importance of Orthorhombic Crystal Forms

• The crystal forms of the Orthorhombic Crystal System are important because they demonstrate how crystal symmetry can produce a wide variety of geometrical shapes despite unequal crystallographic axes.
• Understanding prisms, pinacoids, pyramids, dipyramids, and domes helps students identify minerals and classify crystals correctly.
• These crystal forms play a major role in mineral identification, crystallographic analysis, geological investigations, and materials science.
• The study of orthorhombic crystal forms also provides insight into crystal growth processes and the relationship between internal atomic structure and external crystal shape.
• Since many economically important minerals belong to this system, knowledge of orthorhombic crystal forms is valuable for mining, mineral exploration, and geological research.
• Orthorhombic crystal morphology serves as a bridge between highly symmetrical crystal systems and lower symmetry systems, making it an essential topic in crystallography and mineralogy.
• Because of their scientific significance, diversity of shapes, and occurrence in numerous important minerals, orthorhombic crystal forms remain one of the most important subjects in the study of crystal morphology and crystal classification.
