Tetragonal Crystal System

Introduction

• The Tetragonal Crystal System is one of the most important crystal systems in crystallography. It occupies an intermediate position between the highly symmetrical cubic system and the lower symmetry crystal systems. Crystals belonging to this system exhibit a characteristic four-sided symmetry and often develop beautiful prism and pyramid forms. Many naturally occurring minerals crystallize in the tetragonal system, making it an important topic in mineralogy and geology.

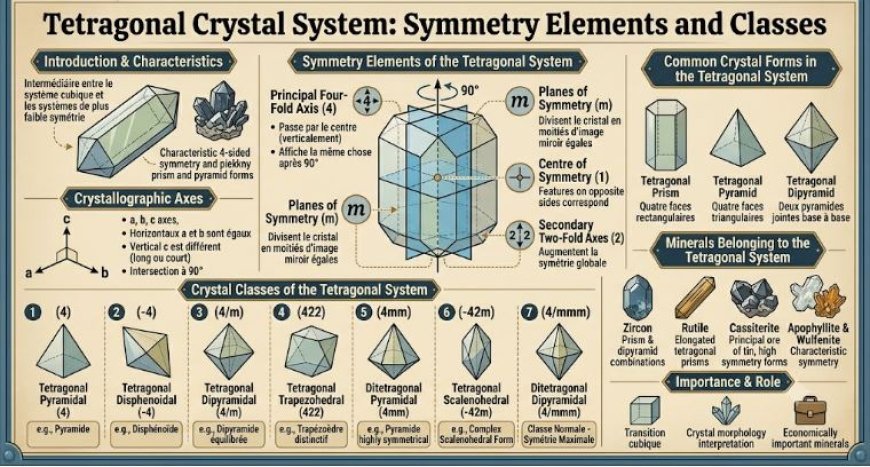

Characteristics of the Tetragonal Crystal System

• The tetragonal system contains three crystallographic axes, designated as a, b, and c. The horizontal axes a and b are equal in length, while the vertical axis c is either longer or shorter than the other two axes. All three axes intersect at 90°. This arrangement produces crystal forms that appear similar to cubic crystals but are elongated or shortened along one direction.

Crystallographic Axes

• The crystallographic axes of the tetragonal system are arranged at right angles to each other. The equality of the two horizontal axes and the unequal vertical axis create a unique geometric structure. This difference in axis length distinguishes the tetragonal system from the cubic system and influences the external shape of the crystals.

Symmetry Elements of the Tetragonal System

Four-Fold Axis of Symmetry

• The most important symmetry element of the tetragonal system is the four-fold rotational axis. This axis passes through the center of the crystal in the vertical direction. When the crystal is rotated through 90°, it appears exactly the same. The presence of this four-fold axis is the defining characteristic of the tetragonal system.

Planes of Symmetry

• Many tetragonal crystals contain mirror planes that divide the crystal into equal mirror-image halves. These planes may occur vertically, horizontally, or diagonally depending on the crystal class. The number of mirror planes varies from one class to another.

Centre of Symmetry

• Some tetragonal crystal classes possess a centre of symmetry. In such crystals, every face, edge, or corner on one side of the crystal has a corresponding feature on the opposite side at an equal distance from the center.

Secondary Axes of Symmetry

• In addition to the principal four-fold axis, some classes contain two-fold rotational axes. These secondary axes increase the overall symmetry of the crystal and contribute to the formation of more complex crystal forms.

Crystal Classes of the Tetragonal System

Tetragonal Pyramidal Class (4)

• This class contains a single four-fold rotational axis as its main symmetry element. It lacks mirror planes and a centre of symmetry. Crystals belonging to this class often develop pyramid-shaped forms and possess relatively low symmetry compared to other tetragonal classes.

Tetragonal Disphenoidal Class (−4)

• The Tetragonal Disphenoidal Class contains a four-fold rotoinversion axis. This symmetry element combines rotation and inversion operations. Crystals in this class exhibit unique crystal forms that differ from ordinary pyramidal crystals.

Tetragonal Dipyramidal Class (4/m)

• This class contains a four-fold rotational axis together with a horizontal mirror plane. The addition of the mirror plane increases the symmetry and results in more balanced crystal forms.

Tetragonal Trapezohedral Class (422)

• The Tetragonal Trapezohedral Class possesses one four-fold axis and several two-fold axes. The presence of multiple rotational axes gives rise to distinctive trapezohedral crystal forms.

Ditetragonal Pyramidal Class (4mm)

• This class contains a four-fold axis and several vertical mirror planes. The combination of these symmetry elements produces highly symmetrical pyramid-shaped crystals.

Tetragonal Scalenohedral Class (−42m)

• The Tetragonal Scalenohedral Class possesses a combination of rotoinversion axes and mirror planes. These symmetry elements generate complex crystal forms that are important in crystallographic studies.

Ditetragonal Dipyramidal Class (4/mmm)

• The Ditetragonal Dipyramidal Class is the normal class of the tetragonal system. It possesses the highest symmetry within the tetragonal crystal system and contains the maximum number of symmetry elements. This class includes a four-fold rotational axis, multiple two-fold axes, several mirror planes, and a centre of symmetry.

Common Crystal Forms in the Tetragonal System

Tetragonal Prism

• The tetragonal prism is one of the most common crystal forms in this system. It consists of four rectangular faces arranged parallel to the vertical axis and often forms elongated crystal shapes.

Tetragonal Pyramid

• The tetragonal pyramid consists of four triangular faces that meet at a common point. It is commonly developed at the ends of tetragonal prisms.

Tetragonal Dipyramid

• The tetragonal dipyramid is formed when two pyramids are joined base to base. This form is highly symmetrical and commonly observed in minerals belonging to higher symmetry classes.

Minerals Belonging to the Tetragonal System

• Several important minerals crystallize in the tetragonal system and exhibit well-developed crystal forms.
• Zircon is one of the most common tetragonal minerals and often forms beautiful prism and dipyramid combinations.
• Rutile frequently occurs as elongated tetragonal prisms and is an important source of titanium.
• Cassiterite, the principal ore of tin, commonly develops tetragonal crystal forms with high symmetry.
• Apophyllite and Wulfenite are also important minerals that belong to this crystal system and display characteristic tetragonal symmetry.

Importance of the Tetragonal System

• The Tetragonal Crystal System is important because it represents a transition between the highly symmetrical cubic system and crystal systems of lower symmetry. Its well-developed crystal forms, clear symmetry elements, and economically important minerals make it a significant subject in crystallography, mineralogy, and geological research. Understanding the symmetry elements and crystal classes of the tetragonal system helps students and researchers classify minerals and interpret crystal structures more accurately.
