NMR Instrumentation

Understanding NMR Instrumentation

• Nuclear Magnetic Resonance (NMR) is an effective analytical method utilised in a variety of disciplines, including chemistry, biology, and physics.
• It enables scientists to discover the structure of molecules, investigate materials, and even examine biological samples.
• NMR stands for Nuclear Magnetic Resonance. It is based on the fact that certain atomic nuclei possess magnetic characteristics.
• When put in a high magnetic field and subjected to radiofrequency (RF) radiation, these nuclei can absorb and resonate. This resonance gives significant information about the environment around the nuclei, allowing scientists to examine molecular structures and dynamics.

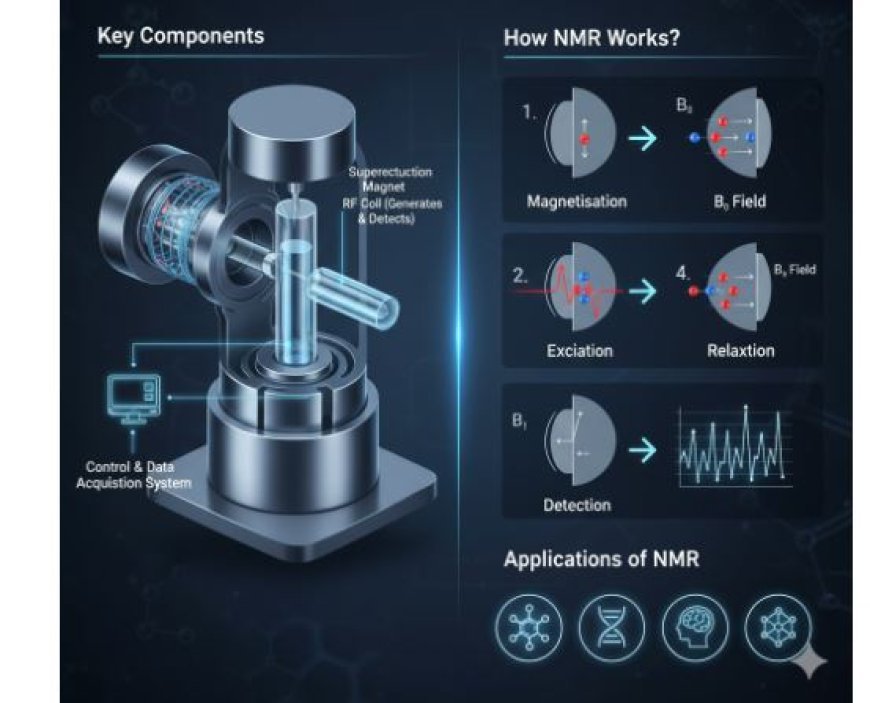

Key Components of NMR Instrumentation

NMR equipment consists of numerous important components. Let us break them down:

1. Magnet.

• The magnet generates a strong and homogenous magnetic field necessary for NMR experiments.

• Types: There are two major types of magnets used in NMR:
• Superconducting magnets provide large magnetic fields and are widely employed in current NMR spectrometers.
• Permanent magnets are used for low-field NMR applications.

2. Radiofrequency (RF) Coil

• The RF coil generates radiofrequency pulses to activate nuclei in the sample. It is also responsible for detecting signals released by nuclei when they return to their natural state after being stimulated.
• RF coils vary in form and size based on the sample type (liquid, solid, or gas).

3. Sample Holder

• Function: Holds the sample in place inside the magnetic field. It is often constructed of glass or other nonmagnetic materials.
• Common sample containers are NMR tubes for liquids and specialised holders for solids.
• Control System: The control system handles the NMR instrument's tasks, including producing RF pulses, regulating the magnetic field, and data collection.
• The system contains software to handle and analyse data, enabling researchers to interpret NMR spectra.

4. Data Acquisition System

• Converts signals generated by the sample after stimulation into digital data for analysis.
• Advanced algorithms analyse signals to create an NMR spectrum that shows the chemical environment of nuclei in the sample.

5. Computers and Software

• The computer and software play a significant role in interpreting NMR data.
• The program enables researchers to visualise spectra, identify chemical structures, and conduct quantitative analyses.

How does NMR work?

Let us break down the NMR procedure into easy steps.

1. Preparation: Place the sample in the holder and insert it into the magnet.
2. Magnetisation: Magnetic fields align the nuclei of specific isotopes, such as hydrogen or carbon-13.
3. Excitation: The RF coil emits a pulse of radiofrequency energy, causing aligned nuclei to absorb and transition to a higher energy state.
4. Relaxation: After the RF pulse, the nuclei revert to their normal alignment and release energy as radio waves.
5. Detection: The RF coil detects emitted signals and converts them into a spectrum via the data collecting system.

Applications of NMR

NMR has a wide variety of applications across several fields:

1. Chemistry involves analysing molecule structure and motion.
2. Biology involves studying proteins and nucleic acids.
3. In medicine, Magnetic Resonance Imaging (MRI) is used to see organs without intrusive procedures.
4. Material Science involves characterising materials such as polymers and metals.
